Fully compatible for EcoSpar pellet stoves up to 25kW
Αγαπητοί πελάτες, οι παραγγελίες με το κουμπί "ΓΡΗΓΟΡΗ ΠΑΡΑΓΓΕΛΙΑ" λειτουργούν ως εξής:
60 μέρες δικαίωμα επιστροφής χρημάτων
Πληρωμές
Τρόποι πληρωμής

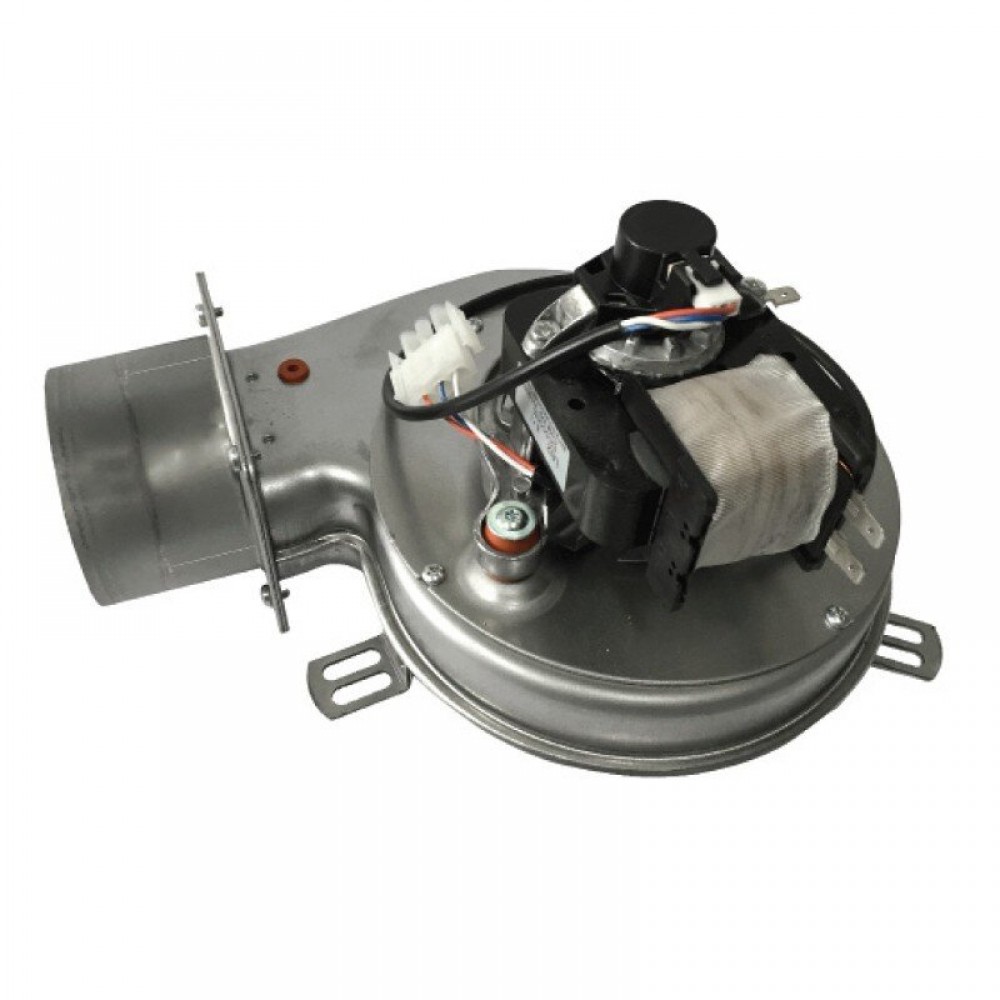

The smoke extractor has been designed to be used for pellet stoves and biomass boilers, which range power is from 5 to 25 KW.
Can be mounted on:
EcoSpar - Auriga-Alba-Gemini-Karina-Tukana-Solara
NORDICA - MCZ - AMG
PALAZZETTI ref. 895713870 mod. Angelica - Caterina - Giada da rivestire - Isabella - Letizia - Margherita new - Penelope - Silvia - Slimmy - Tracy
PIAZZETTA ref. RF02010660 mod. P158T
SIDEROS mod. Gemini più
PALLADIO mod. Scozia 10 Kw
It can be set up in place of LN2 PL20 model and XIANG RRL152
Provided with aluminised steel spiral, which output diameter is of 80 mm, and AISI 430 steel rotor.

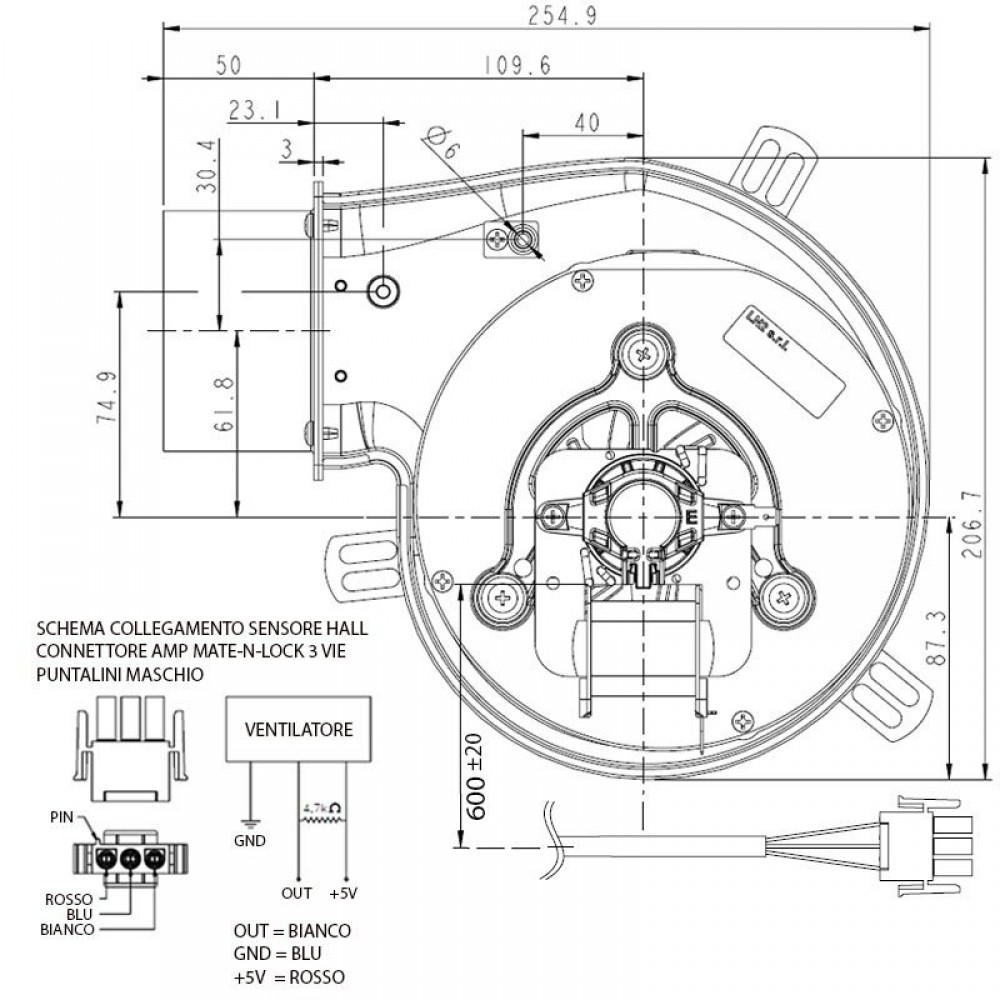

Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder).
In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: H; Protection class: I.
ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ | |
Βάρος (kg) | 1.0000 |
Κατανάλωση ισχύος (W) | 50 |
Ταχύτητα περιστροφής (rpm) | 2500 |
Παραγόμενη πίεση | up to 300Pa |
Flange connector (mm) | 80 |
Μέγιστη ροή αέρα (m³/h) | 160 |
